Scart switching

Many people in holland have received a so called media box from a cable company for free in principle, though some extra channels cost a few euros extra per month. The box has a video output in scart form (not cinch) and sometimes the setup I deal with has a connection from beamer input to a random type video recorder, and sometimes the VCR is recording from the cable antenna, while the beamer (and stereo or quadro sound system) is used to look at another channel, which is then from digital cable channels. And sometimes the VCR needs to record from the media box.

In essence, I want to switch the beamer and sound inputs from the output of the media box or the vcr, which sounds simple enough, there are scart switch boxes to do such a thing but just like an hour lecture about connecting an amplifier to a driving machine and the onnected grounding issues, any scart connection can have its peculiarities, too. First, there are three basic types of possible connections with scart cables, composite, svhs and rgb, second the connections are defined such that the driving amplifiers of the signals should have a sense of balancing or ground level variation management, which usually is solved by the electronics design.

The third issue was the actual issue, which is signal routing and impedence and level integrity. Like many pople know, antenna cables for instance can be split to more than one receiver, but that should happen with at east a passive, and preferably an active splitter, simply bacause otherwise the signals in the antenna are dampend because the connected tv sets all require an amount of power, 2 more than 1, and the impedance of the cable which is often 75 Ohms is reduced to half that when two tv's are connected, which causes reflections in the cable.

Anyway I got this cheap switch and some random scart cables, and that works, but unfortunately it allows the two devices connected to the switch record each others´ signal, which makes the media box loaded with two instead of one input, which makes the signal level lower, and thus the image darker and maybe even non-linear, so because I like good quality the switch had to be taken of and me again back to switching cables.

So I thought I´d do a little homework and fix the tracks on the pcb in the switch box so that cross feeding of the composite signals would be broken, but instead I probably like often had a different idea about signal names then the scart video plug manufacturers and read the signal names as the corresponding output names, while probably they were input names, so I disconnected the actual signals, and the switch went dead...

Easy to fix though. Reminds me of the chip samples I´ve prepared for video routing, but they are a bit hard to solder, even on the conrad conversion pcbs, and I have only a few of those, and the smallest footprint part I used on at least one already. It is cooler of course to do electronically controlled switching, and possibly adjust the video signal level, either with more switches (on matrix is 16x16, and certainly better than 4066s) or with some gain controlled buffers with good frequency behaviour. Why doesn´t the cable company put out a perfectly max adjusted video signal ? Probably because they want space to do things with like the audio for some commercials is extremely loud compared to some programs on some channels.

New small audio design

For easily portable audio amplification, even easier than the smallest system I made, I planned and started a mini, portable radio sized amplifier with two (maybe four) speakers in one enclosure, and with preferably really good quality, and some low too, and again without bass reflex.

I got these speakers:

from Pioneer, which are quite small, and thus far I came up with this case:

Which is planned to be airtight, it has a 12 mm front plate, and fairly light triplex sides and back, with (legal) hardwood enforcement rods in the corners, and full backplane damping with teethed carbon foam.

It needed a few more screws, but it is nearly aritight and all sides stable, I got more screws but I didn´t completely finish the woodwork, also because I plan on making it stereo powered, that is that there are amplifiers inside, which will work on mains, not batteries.

To try it out I used the existing small sized amplifier with heavy external toroid transformer and a good DA converter to drive it, which sounded great, even though the size is just like a portable radio, maybe a bit more heavy, it is currently (without the amp and transformer) 1.6 kg and has a size of 30x23x9 cm.

I sawed the wood myself with a cheap circular saw, which was a bit hard to get accurate enough, like usually a woodstore can, but it is working. The speakers are 20 Watts continuous but 110W a piece maximum power, and 10 cm diameter, and these pioneers sound neutral and very nice, except I´m sure I´d better get the little horn out and put in tweeters. I have the parts for the amps based on the TDA7294, including a 50 Watts toroid tranformer which easily fits in the enclosure.

The most energy saving microcontroller

For a fair number of years already Texas Instruments makes very popular quality microcontrollers of which the MPS430 series are low power little chips with all kinds of input output options.

// MSP430F20x2 Demo - ADC10, Sample A1, AVcc Ref, Set P1.0 if > 0.5*AVcc
// Description: A single sample is made on A1 with reference to AVcc.
// Software sets ADC10SC to start sample and conversion - ADC10SC
// automatically cleared at EOC. ADC10 internal oscillator times sample (16x)
// and conversion. In Mainloop MSP430 waits in LPM0 to save power until ADC10
// conversion complete, ADC10_ISR will force exit from LPM0 in Mainloop on
// reti. If A1 > 0.5*AVcc, P1.0 set, else reset.
// MSP430F20x2
// -----------------
// /|\| XIN|-
// | | |
// --|RST XOUT|-
// | |
// >---|P1.1/A1 P1.0|-->LED
// L. Westlund
// Texas Instruments Inc.
// May 2006
// Built with IAR Embedded Workbench Version: 3.41A
#include "msp430x20x2.h"

void main(void)
int i, j, max, max2, val;
ADC10CTL0 = ADC10SHT_2 + ADC10ON + ADC10IE; // ADC10ON, interrupt enabled
ADC10CTL1 = INCH_1; // input A1
ADC10AE0 |= 0x02; // PA.1 ADC option select
P1DIR |= 0x01; // Set P1.0 to output direction

P1OUT &= ~0x01;

for (;;)
// __bis_SR_register(CPUOFF + GIE); // LPM0, ADC10_ISR will force exit
// if (ADC10MEM < 0x1FF)
// P1OUT &= ~0x01; // Clear P1.0 LED off
// else
// P1OUT |= 0x01; // Set P1.0 LED on
for (j=0 ; j<10; j++) // 40 Msec (guessed)
for (i=0; i<255; i++);

val = ADC10MEM;
max = 1023-val;
// max /= 10;
max2 = val;
// max2 /= 10;
ADC10CTL0 |= ENC + ADC10SC; // Sampling and conversion start
for (j=0 ; j<1; j++) // 20
for (i=0; i<max; i++);
P1OUT |= 0x01;
for (j=0 ; j<1; j++) // 20
for (i=0; i<max2; i++);
P1OUT &= ~0x01;

// ADC10 interrupt service routine
#pragma vector=ADC10_VECTOR
__interrupt void ADC10_ISR(void)
__bic_SR_register_on_exit(CPUOFF); // Clear CPUOFF bit from 0(SR)

The head of AES

What is with that AES organisation ? Well, it´s the (america based) worldwide Audio Engingeering Society, for promoting good audio or so or anyway its a society which organizes events for audio engineers and such to meet.

I went to a tutorial of Ron Streicher on stereo techniques, in Utrecht this year in the La Vie conference centre, I gues I saw it more as a lecture, and in fact I drove him back to Amsterdam with me because I happened to have come by car, which was cool.

This is a picture taken during the lecture of Ron Streicher (if I´m not mistaking the previous global chair person of Aes) in Utrecht in spring this year called "Stereophonic Techniques". I´ve made a small 3.5 megabits per second 720p HD recording of the end of the talk available:

  quicktime .mov format           (26 MegaByte file) (should run in Qt player, let me know if it doesn´t)
  general mpeg-2 .mpg format   (29 MegaByte file) (I can use this to play perfectly with Pure Video HD)

The audio has been processed which was only a tryout. And of course 3.5mbps is extemely compressed for HD video, so during motion things are far from perfect. The original would be hundreds of megabytes of mpeg2 25mbps to download which would be very unpractical, but THEN things look good all the time! The noise which is in the background because the room had dimmed light I tried to process out, too, which can work to an extend, but I wasn´t all satisfied with adaptive filtering using the wonderfull Cinelerra FOS video processing program, so I tried extensive blurred edge detection layer and a small delta T frame to frame comparison adaptive filtering measure to detect the screen area to get filtered, even during a zoom, and then an adaptively filtered layer with both absolute and standard deviation adaptiveness, all in 32 bit per component floating point RGBA colour space. I got results, and sure a lot of the background looks good then, but perfect it didn´t get to be yet, so there is room for improvement, and it is fun to try these advanced image processing methods out on 2k material, and with overseeable processing times like a frame per second.

Bill Whitlock (above) has recently given a talk (that´s a Delft Uni type of statement) about Audio Signal Grounding in Amsterdam, of which I HD filmed a bit, in this case I wanted to make 480p Dvd broadscreen format compressed result, where preferably with very low bandwidth the screen could still be read:

from the original HD produced in the camera (a Sony HC3 doing 25 mega bits per second mpeg-2 with 320 kb/s audio mp3) that is no problem when the result is viewed with a capable viewer (for instance a Dell M90 notebook I use with WUXGA screen (1920x1200 which is 1090HD+) with Nvidia´s Purevideo hardware video and mpeg2 decode acceleration), but then the 23 minutes file I have is gigabytes in size which is not practical enough at all over the current internet. Time for dozens of megabits upload and download Mbone, guys ? Well, I´m not sure that would solve the world´s problems but it sure would be even more fun than the 1 megabit/sec up and 8 down Adsl I get to use at the moment.

For the moment for realtime uploading of a film from the server to somebody wanting to see it can be at most at about a megabit per second, which is already great of course, T1 from a little zyvex. I made a few versions of the material, maybe I´ll make some others later on:

   Bill Whitlock in mpeg-2   23 minutes of the talk  A (some new codec) & V
      (177 Mega Bytes, takes at least over 20 minutes download)  about a megabit per second
   Bill in a bit higher quality mpeg-2, but no sound (1:54 test)
   Bill in mp4 which plays in quicktimeplayer but no sound (idem)

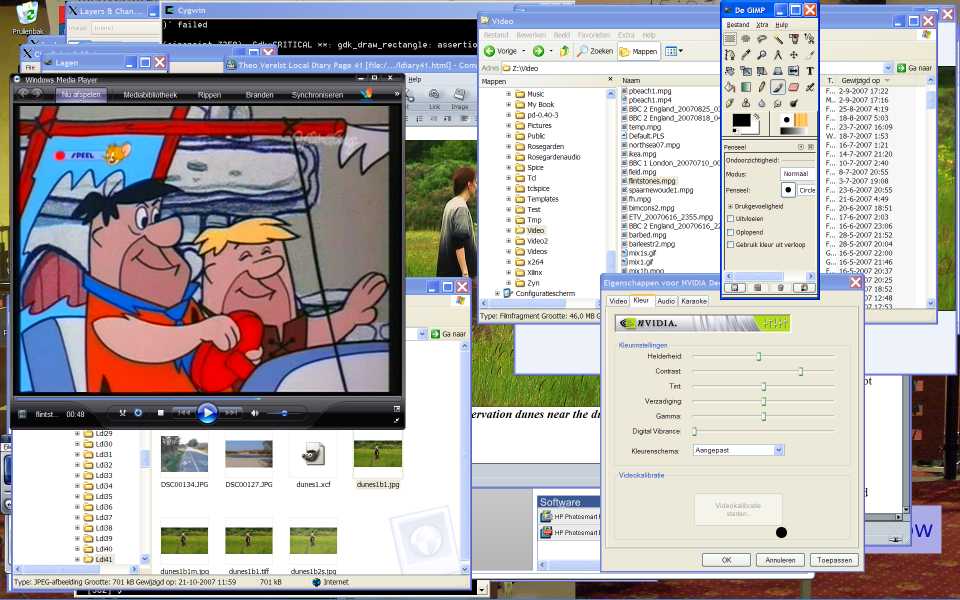

Maybe I´ll update this later on because the audio of the first file don´t work in my windows media player with Purevideo though it is there, the other two are quality tests which come from a better video preprocessing step. To make the little film more web-faehig I used a satellite type of encoder first (h265) to correct some motion aspects and generally reduce bandwidth in a neat way (certainly for lectures) and then a mpeg-4 transcoding step to make the whole more cinematic in character and reduce some motion related bandwidth, too. I prefer to have the results in mpeg-2 Transport Stream format because that is probably the most general and widely used, and most of all because then I can use the excellent Purevideo to view the result on a HD screen which really works and looks great (totally without any artifacts when the material is high grade).

So the resulting mpeg2 can also be used: it has progressive information in it and of course at 1mbps is fairly low bandwidth for full DVD size video, and can be shown on a bigger screen than standard 480x640wide as it is coded, and will then show more detail and still quite bearable motions, and of course in this process there is no hand-wise processing or drawing or tweaking of frame parameters or so, just some ffmpeg unix commands on a row (preferably on a fast processor like the Athlon 3.3GHz/64 I use with Fedora 7/64 as OS) and then the results are tested in various ways: a simple software based player (like quicktime on windows, or winamp with video, or realplayer) which can play this format on a fairly fast machine of nowadays easily enough, a more advanced player (like mplayer on windows and linux), also in full screen mode, and on various screens, and finally the purevideo accelerated windows media player (it only works there yet...) which can blow up to HD in perfect quality, and also to 720 HD (1280x720 pixels) which I viewed at a Mitsubishi HD1000 beamer of such resolution to get an impression what the fast (DLP based) and perfectly decoded (hardware based up to at least perfect 1080 HD) signal path would show me to be in the processed film, and of course how it looks on the BIG (106 inch 16:9) screen! Well, it looks quite bearable still, in spite of the very low bandwidth, and the quality of the colours and light is fairly ok too it appeared. When set up right (almost neutral settings) the 1500 lumens on the 1.5 reflecting pro grade screen of the projector in the test space are close to reference accurate according to various tests, and so when material looks neutral and attractive on it, it probably is.

Of course the pristineness of the original HD recording reproduced the same way isn´t really the same anymore, but still for a demonstration the result looks viewable and nice, and the motions are quite natural still a 1mpbs.

Oh, I used Heroine´s or in fact the sourceforge version of Cinelerra (which I also used to preview and write the h264) to process the audio a little bit, like a AVC so some airco noise or so is audible when all is quiet.

     "Shaping the future of sound re-enforcement" !?

I doubt it. Makers me think back about researching, designing and applying in possibly nervewrecking practice a stage play / musical stage amplification system in highschool, when I was the leader of the technology group for years (after having been active member years before, for instance with the school band) where whispersoft acting and fairly loud music had to be amplified, and in high quality. At least that´s what I aimed for and got. Included good quality (1984) front and mid hall speakers and amps (yamaha / bose in front, big Technics mid), various static microphones (amoung which a couple of Senheiser MD420s or was the 30s) and then acoustics designing the whole such that feedback and audio quality would be great, which could be heard on a seperately made recording at the time, of which hundreds of quality audio cassette copies were made by me (with added cassette decks of some pals) at the time.

Well, that was about setting the system just under just not feedback, making sure no resonant modes are in the way, making sure speaker placement and direction is good, floor boards on stage are damped, the audio signal path very decent at least, cables being shielded against the very present hum of the dimmer pack and connected lights being used tone controls and combination of front and mid hall speakers set to sound neutral and open, and of course the whole hall (a decent gym actually) with the audience in place should sound ok reverberationwise. Very hard to keep the noise down while keeing volume and intelligibility good.

No DSP theo ? Nope! Usually that is for people who believe too much in magic, at the time there wasn´t so much around of that yet, we just had the CD player, although the same year I bought a Korg Poly 800 with modulatable digital delay built in, and honestly even now you have to do a good job to get good enough quality digital effects to work great live, honestly, a lot of it plainly sucks and is more of a pain in the behind than a great addition to the audio chain, like I found when doing (in that case playing the synthesizer) a rock performance in france (see other page) and the PA system suddenly started to 'amplify' basses I´d played maybe half a minute ago in a loop or so...

   The listener and his ears, Age Hoekstra


Trolltech for some time has beenknownfor their userinterface product, which is quite extensive with version4, and is fairly well known, also in Linux land. It's a C++ library for all kinds of UI elements for most computer platforms, and it is also available as Free and Open Source product.

    Screendump of full 1080 HD + some screen showing linux (fedora 6/64) and windows (XP pro with cygwin/Mingw) Qt examples

Believe it or not but I compiled the whole of Qt4 including all the examples from source! The above screen shows some of the results, I had a pre-compiled (free) version for Fedora linux so that was easy, but I thought I´d compile the windows version myself, well anyway to let the mingw gnu CC do the job of course, and I used the excellent cygwin environment as shell. That has to be set up right, but works fine enough, sort of like Linux command line on windows XP pro (SP II iirc).

In the above screendump (which has no tricks or image processing in it) two of the example windows are shown, one I compiled (the example that is, not Qt) on Redhat Fedora 6/64, and I ran it on the athlon 3.3GHz/64bit server machine but with its window redirected to the X server running on the XP machine so the user interface becomes visible on the notebook screen while the program runs on the linux server. The other was compiled and Qt enabled using the same mingw compiler setup under cygwin bash that compiled the whole of Qt, including Designer! And that too works good, so it was a succesfull experiment which could give good hope for the future that UIs can be well made for linux and windows.

Beware that the big demo window was really compiled totally from source and works without error! (You´re lying now, Theo, we IT boys decided you just cannot do such a thing...) No, really.

There was one thing though, that if I recall correctly while writing the text with the images on this page the opengl things were not there on linux, or maybe the other way around, but this window I copied looks like windows XP style, and it has working GL in it:

Well, it is a great idea, but I felt right at home at the Atari ST Resource Construction Kit and 180 kilobytes of graphics and OS Rom libraries, and here it is like a lot of things are made in the time of the decline of the new age: a lot of things there in not really a great ordering, and not so much interesting new things, though opengl in the UI is cool, and lets not forget for non commercial purposes it is Free and Open Source, and a portable hip looking UI kit, which is great anyhow.

Light Mixing

Strange terminology, but it refers to the 'mixer' devices which actually drive lights with faders. Ever do that? Back in highschool, when that was still pretty hip (new) I went talkingto some (startup ?) company in the Hague city to see what they would have for the budget and some time later a system was bought and I installed it and supervised its use for an important stage play.

In fact at the time I had years of experience of building and playing with light organs myself, using car-lights and thyristors with a few hundred watts of transformed power (12/24 volts) which I had learned to drive well even with digital logic (TTL mostly). I knew about the disturbance signals, digital seperated from the many Amps of drive current and even about inductive loads and experimenting (it was a hobby) without blowing up 3055's and thyristors (bit hard) and their drive circuits and especially keeping the main lamp drive voltages and currents away from the sensitive digital electronics, because the whole ttl experiment boards (breadboards with DIL chips) would blow up easily if only one loose drive wire would touch something there, or if the TTL level converter would blow up....

Well, this is only a humble hobby project with a fun Velleman kit, meaning its a box with parts a printed circuit board and a manual to construct the light dimmer. Especially it has a voltage control input though not exactly with linear response, and the preprogrammed PIC microcontroller doing the pulse width modulation through driving of the obligate triac has clear steps in its response, which makes the result of the circuit not directly usefull for the slow and supersmooth light dim action I had in mind for the home cinema space.

     An 800Watts voltage controlled light dimmer (Velleman) kit in buildup

Well, it does work, and the PIC is in a socket, so I could replace it with a small MSP430 board of TI and program such a microcontroller to do the job better, or stay witg goodol´ electronics thinking and do it analog...

The opto coupler at the input is needed for galvanic seperation which makes of course the voltage sensitivity non-linear and with non zero threshold voltage, and as experimentalist it is of course nicer to hve the control circuit seperated from the mains instead of with a capacitor voltage divider on the hot wire and drive the triac with a optocoupler. The circuit does work though it dims a lot of halogen lights and should be up to 800 Watts even. I tied a long low voltage wire to the controll input leading to a small rechargable battery pack of 4 penlite NiMh cells and a potmeter which sends a variable voltage to the board, so the dimmer is remote controlled with a wired unit which has a normal dial control, and that works ok. Maybe I could offset the controll voltage to the ignite voltage of the opto coupler LED.

Of course my intention was to make it remote controlled and operated by computer or the linux with tcl Fox Board which is in my computer controlled analog mixer prototype. Maybe I should make that a kit and join schmartboards in CA...
