To make clear what the basics and some more advanced ideas in sound synthesis are, this page contains overview of theory of sampling and fourier analysis, sound generating, and various synthesizer related kinds of signal processing building blocks.

Copyright is preserved for all materials on this and affiliated pages, permission can be granted to use and reuse the materials for non-commercial purposes with the source is mentioned after the author gives written permission.

First the idea needed to understand what sounds samples are, what they look like, and what they probably sound like. As this page grows, more will be added on specific synthesis elements I experimented with.

The Java applet on this page takes on a central role, because it allows viewers to try out for themselves what certain signals look like, are made of, and even their frequency spectrum.

Existing Software

For people with an interest in trying the sounds generated on this page: the software I made thus far for these basic waveforms is not yet generating wav files or other sound files, because I don't have the means. It is quite possible to use other packages, including software synthesizer package to generate sounds according to the theory and formulas on this page, which illustrates both the theory, as the need for being aware of their internal processing.

More advanced software is available, for doing string simulations ( the program sources are in the zip file,
see page,
example sound file 1,
example 2,
example 3,
page with older version, cygwin library and tcl link explanation ),
sample processing (A)
the program source version A (C file),
sources B,
see page A,
or B,
or C
for more sources and examples,
example sound file A,
example sound file B,

and even for
additive synthesis,
the program source,
see page,

which all work with CD quality (currently mono) .wav files (see the various pages for examples), which can be played with netscape, window media player and the like.

I can't use these myself at the moment, but the sources and windows 95 , 386+/pentium+ executable programs are available. Beware of the need for the cygwin library, the right version and where it can be obtained is indicated on various pages where the programs are described. There is a zipped version on somewhere for easier download, just install the version going with the .prg file in the same directory as the program file to make things work, or it can be put in the 'windows' directory.

These programs are completely capable of making high quality synthesized sounds and process them in various ways, except they don't contain various synthesizer building blocks such as analog (equivalent) type of filtering, envelope generators and controlled amplifiers, and they also don't have interpolated fourier spectrum synthesis and sample looping facilities, that are available in (8 bit) example software ( the program sources are in the zip file, older source as text file see page) for driving my current synthesizer hardware. That software doesn't generate output wave files, it communicates over the printer port with my hardware, though it can be used to do graphical interactive waveform generating and display on a 286+ machine (vga or so).

Waves, sounds, samples and synthesizers

First the basics of samples, what they sound like, and how we can look at them in various mathematical ways to generate them and describe them. These mathematics are interactively explained, to gain a good understanding of the underlying principles of every digital signal machine, such as cd players, samplers, analog and digital signal processing devices and synthesizers. These are fundamental to most contemporary musical experiences, and it is definately of use knowing about them, and also to know some of their underlying principles to use them right, and value various kinds of machines for what they are worth.

As I have time I'll add information about wav players, PC audio processing software, and mpeg coding.

Waveform basics

A waveform is a graphical idea of represening the motion or vibration of a sound. When a sound is produced, the air carries a a pattern of pressure changes from the sound source to the ears, who detect these waves in the air they are in touch with.

The amplitude of the pressure waves is a measure for how loud a sound appears, whereas the repeat rate of the pressure changes is a measure for the frequency of the sound, fast pressure changes are high frequencies (or high notes), slow pressure changes are low frequencies.

When a microphone is used, the (small) electrical signal from it is similar to the patterns of changed pressure traversing the air it detects, and after electronical amplification, such a signal can be made visible for instance on an oscilloscope, where is can be seen a changing, wavey line on the screen. If you'd have a seismograph writer, the machine with pens seen wiggling when an earthquake occurs, which is fast enough, the pressure changes picked up from a certain listening position in the air, by an ear or a microphone, could be recorded on paper as wiggly patterns in a non-volatile form.

A computer with a sound card and a microphone can also be used to make a sounds recording, but in a different way, and can display that recording in graphical form. The main idea as many will know is that the sound making an electrical signal in the microphone is amplified and fed to an Analog to Digital Converter in the soundcard. Such a converter periodically takes a sample of the magnitude of the signal, and computes the voltage of the microphone signal at those times, which are then recorded as a long list of what are called sample values.

The AD converter takes the electrical wire from the input on one side, and produces digital samples on its outputs on the other side, making digital signal patterns according to the voltages it measures all the time. The computer puts these values in its memory, one every little time, storing them in a part of its memory where they later can be used or processed. The DA converter van be given these values from that memory in the same order, which then converts them back to an electrical signal, which sounds the same as the signal that has been put in the input of the AD converter, which is the called sampling and sample play back as general terms.

The idea of sampling is that both the number of values for each sample are limited, and the number of voltages recorded per second are limited, on a CD player, there are pretty exactly 44100 samples per second (44 thousand) taken or played, and 65536 levels recognized. That means a number is recorded every about 50th of a millisecond, and the number is about 5 digits accurate, which is not that easy electronically, though currently it is not considered all to hard, there are many chips that have circuits to do this job.

The term sampling refers to the idea of taking a sample of the signal at some point in time, and there is a lot of theory indicating how many samples we need to take to be able to reconstruct the original signal from samples. The fact that that is possible is not at all trivial, and it depends on the fact that the signal has limited bandwidth, which means that the highest frequency in it is limited. As an idea, when the wiggles made by the seimograph are slow, it would suffice to make a little mark every centimeter or so to get a good idea of the signal, whereas when it changes rapidly all the time, it might not even by good enough to do so every millimeter.

The remarkeble part of the theory is, that it can be mathematically proven that the samples every now and then can be enough to reconstruct the exact original signal, with mathematical, perfect accuracy, when the highest frequency of the signal is not more than half the sample frequency.

The less well known term quantization refers to the idea that when we measure the hight of the signal, for instance with a centimeter on the seismograph paper, we measure maybe up to a millimeter, but not more accurate, so wiggles smaller than a millimeter are lost, and not recorded. Doing so introduces a quantisation error of for instance + or - half a millimeter. For an audio signal of lets say .65 volt, the quantisation error of an 16 bit signal would be about 1/65000 of .65 volt is 10 micro volt, which is a very small voltage difference. But when a small signal is present, for instance of .0065 volt (turn the volume knob a quarter or so), the quantisation error on the CD players output connectors it about 1 % of the signal, which is quite audible, and unacceptable for hifi audio.

The sampling accuracy is pretty good when 16 bits are used, though there are newer recording studio facilities and media (such as dvd) where even more accurate signals of for instance 20 (1 in a million) or 24 bits are used, to prevent distortion with smaller signals.

The fun starts when a sample is put in a computer memory and it can be modified or stored, for anything from phone answering machines to making a hit record. The lists of samples are for normal CD quality 44100x2x2 = ca. 176 kilo bytes or one sixth of a megabyte per second recorded sound, because every sample takes two bytes times two channels for stereo. So on a 128 Megabyte computer system, about 10 minutes of CD quality sound samples fits in memory, without the need to store it on disc. For dealing with sound synthesis, this is a generous amout that is normally not needed, except when for instance every note of a grand piano is sampled seperately, for various loudness levels, then it may well not suffice.

As we know from commercials and such, when we play a voice back at different pitch, we get growly or micky mouse voices, and when we repeat a little piece of a recording a few time, funny stuttering effects occur. The former is an example of changing the pitch of the recorded sample, which can be done by changing how fast we feed the samples to the digital to analog signal converter, if we do this faster we are sooner at the end of the sample and the sounds will be higher in pitch. The other effect is called 'looping' a sample, repeating a section of it, for instance one word or a syllable, in a loop, many times.

Clear enough there is no reason to limit the type of signals which we can record as a sample, so we can plug in a guitar, a electronical organ, a effect record, whatever to the ad converter from the soundcard, and make digital recordings in the form of short or long 'samples', which is than terminology for refering to the list of bytes in the computer containing the audio signal like the seismograph paper.

The same then holds as with the voices sounding like donald mickey mouse when we vary the playback pitch: the sound becomes unnatural when it is detuned, a middle piano key is not a bass note played at 78 rpm from an LP, the sound structure is different, even though the instrument is the same.

The main point is that the way a recording sounds, depends on the signals appearance, certain signals sound certain ways. The main point of the seismograph approach is that it visualizes the signal as a graph, which can at least be inspected visually. Suppose we put all the samples on a row as a wiggely line on the computer screen, we in principle should be able to tell what signal graph corresponds to which audio impression. When the line is completely constant, there is no signal, when there are wild and rapid excusions, there are probably wild noises with high frequencies going on.

The rest is hard, realy quite hard, for two reasons: there are a lot of samples to put on a graph, 44 thousand for a short, one second sound, and the shape of the wiggle is not so easy to relate to a specific sound at all in general. The former can be solved by showing graphs which are 'zoomed down' from many samples, by taking a lot of them together for each little line segment of the graph, which works for instance to see the pauses between words of a sample of a spoken sentence, which are little flat, 0 amplitude pieces of sound absence in the graph.

It doesn't work that well on for more signal information, which can be understood

Hands on experience

The applet I'l put on this page uses Java 1.1, I didn't make it, it's from 'dsptutor' affiliated with 'online university'.

You need a Java-enabled browser to view the applet.

Number of samples:
Sampling rate: samples / s
Signal waveform expression:
Filter coefficient: (dimensionless), set 1 for pass, that is no effect.
Filter resonance: (dimensionless), set 0 for no resonance.

The menu on the left of this page drives the expression field over javascript to make the whole idea interactively handy, on top of the normal use of the applet, which is to type in mathematical expression in the entry, and use the plot buttons to see what the resulting signal is like.

Certain menus will simply overwrite the formulas with preset values, and some also press the plot buttons, while others only change the formula, so you can plot yourself when desired.

These links also change the expression field when clicked.
A square waves ' first 8 harmonics

A sawtooth 's first 8 harmonics (with reversed time, to make it an upgoing one)

A square 's first 32 harmonics

Fourier transform and analysis

The second graph in the above applet is a frequency graph, which displays the frequencies present in the signal it analyses. The idea of fourier analysis is to measure how much of every sine wave which fits an integer number of times in the signal fragment analized is present in the signal. There are various mathematical considerations for all this, at this piont it suffices to say that any time limited signal can be represented in another form in one unique way by the components in the following formula:


The sines and the cosines are orthogonal, meaning that they represent two components that are not dependent on eachother, and they are weighed by factors for each frequency multiple, a and b.

In the above applet, the a's and b's are taken together, which is possible by considering the tangent of the angle between the a and b signal components. I usually assume only using the (anti symmetrical) sine components in the examples, which is enough for generating most known waveforms.

Infinity is a few hundred in the applet, and a number of tens at most in the example waveforms in the menu, it depends.

The subject will receive more elaborate treatment later on, because that is needed.

Sample length considerations

spectrum math against the ear

'Simple' waveforms

To get an idea of the basic waveform's spectrae, try the waveform menu on the left for various wave kinds. Note that for a sample 'fitting' in the analysis window the little bars inthe bottom graph follow exactly the sine components that we use to make the graph. Try for yourself, the applet just receives the waveform, not the formula to do the spectogram with, and computes the spectral components itself, which happen to match what the formula that we used to make the wave contains.

The idea of the non-perfect waveforms is that it can be seen that if we do the reverse of the analysis of the perfect waves, that is if we make the fundamental components, the sine waves of the spectrum ourselves, in the right ratio, the same waveform type can be made, and that the more compoments of the infinite sequence we take into account, the more the 'perfect' wave is approximated.

Also, we see the same effect as takes place in filtering, if we take harmonics away on the high side, the sound gets duller, as if it has its higher fequency components filtered out by a low-pass filter, and the graph gets rounder, the fast changes are smoothened.

The idea of the time reversal and shifting shows that the same sinusodial components can be shifted all at the same time, without the spectrum changing. It should be clearly noted that the phases in spectrum are important, and should be in the graph, but just shifting the whole wave and letting its shape intact doesn't change the sound impression spectrumwise.

When frequency of the waveform is increased a bit, by ten percent in the example, it doesn't fit the window anymore, and there will be a discontinuity where the wave 'wraps around' at the boundaries of the analysis interval, the sound becomes sharp at those points, which is reflected in the spectrum by a range of harmonics. The prinipal component analysis of the waveform as part of a longer sample than fails to give a good impression in easy musical terms.

additive, organ

example filtered (no phase correction)

Dynamical signals

effect of spectrum change

spectrum change as generating harmonics

extreme cases

Subtractive versus additive synthesis

The filter included in the applet signal path is defined by javascript code as the following 4th order filter with resonance.

  for (n = 0; n < nSamples; n++) {
     vout1 = vout1 + f1* (mout[n] - vout1) + (fr *f1)* (vout1 - vout4);
     vout2 = vout2 + f1* (vout1 - vout2);
     vout3 = vout3 + f1* (vout2 - vout3);
     vout4 = vout4 + f1* (vout3 - vout4);
     mout2[n] = vout4;

I didn't make the controls easy to use or normalize the resonance exactly, but the filter works fine.

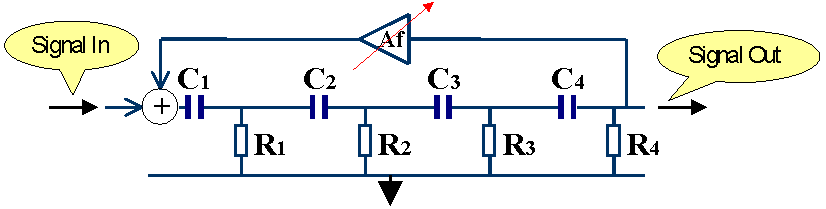

The filter circuit electronical idea is in the figure below:

4th order filter with feedback

The digital counterpart adjusts the value of the RC constant for all C's and R's in the image simultaneously, and the Af is set by the resonance control. There are more or less subtle differences between a sampled version of this circuit and an electronical version. Also, the diagram is a simplified version of the electronics involved, for instance the loading of one section with another causes a different filter behaviour, and therefore additional (buffer) circuitry is needed. See the links on the bottom of the page for a page with actual electronical filters, and their description and simulation.

You may want to see the impulse response by using the smallest pulse from the Pulses menu on the left. Leaving the resonance 0, and letting the filter coefficient go down from 1.0 to 0.01 or some small value, the spectrum shows the transfer behaviour for higher frequencies is that they are damped, and that the point where they start to be damped lies more and more to the left.

The resonance will generate a peak at the cutoff frequency, and the filter starts oscilating at a resonance setting of roughly one.

FM synthesis versus modulation

FM synthesis is not an additive form of synthesis, although it would reside in that class, it is more complicated. Yamaha made quite some well known synthesizers based on the principle, which have very different sound quality than most other types of electronical instruments.

The basis is the modulation of oscilators in frequency sense, that is the frequency of one oscilator is changed by anothers' output waveform. The result is that if we use sine oscilators, for the simplest starting spectrum

Example of synth sound samples

short, overview adsr

pieces (changes)

More than one oscilator: beating patterns

Non-linear behaviour

Amplitude quantization

Synthesizer building blocks, examples

The main building blocks and their use

Synthesizer programming considerations

Though much of this subject has been at least refered to above, a little idea of what a synth programmer can be into is nice and usefull. Even with relatively simple synth infrastructure of high enough quality, such as monophonic analog sythesizers or good simulations, many types of sounds can be made.

Advanced issues, why do some sound better than others ?

circuit speed (even keyboard response)

digital update rate (also control signals)

waveforms, accuracy

frequency accuracy, detuning, phase stability (also oscilator syncing)

dynamical properties (filter types, resonant behaviour, transients, non-linearities)

Attack portion and signal phases

mutual influences of parts

Experiment descriptions

I've made various sounds and software packages, some lend themselves afor entertainment type of descriptions, some are usefull in general as sound processing tools. My latest synth hardware isn't anywhere near production, and there is no good equivalent currently available, though a soundcard with good software would do various things, so the descriptions of it are either for investors, infotainment, or science. Each purpose should be served fine.

Various descriptions of my latest synths' sounds and algorithms

Various diary pages contain descriptions of sound experiments with my old 286 sound generator software and the Z80 based synth (mainly used in sample replay and sequence kind of operation).

That system is built completely by hand from dozens of chips, many electronics parts, and easily a thousand wires to connect it all up. It has red led display with 16 characters, a little calculator keyboard with 40 keys, and can be played by a little baby synthesizer keyboard with a few octaves. It drives an audio amplifier and quality speakers for monitoring the sounds that come from its, custom built, high speed 8 or 9 bit (but accurately so) DA converter.

The end of synthesis

The end of synthesis research and development would be when there is no more need to do either because the perfect and complete instrument is made and perfectly useable and driveable. Never, that is in normal language.
