There is this xilinx new 6 series devboard in notices on the main Xilinx page, with up to a gigaherz (!) internal clock it appears:

I think it's $200,- but maybe it doesn't get made yet, I didn't see a ' buy' button on the xilinx site, except references to AVnet and such.

"Super" Dsp ? Well pretty fast for sure:

Costs 2000 dollar, but this one has 2 triple core Gigaherz very fast Texas Instruments DSPs on it, with devkit C compiler and ethernet. Nice for 4K systems or experiments. There are cheaper starter kits with also fast dps from the TI pros.

This is cute and quite powerfull for only $150:


The beagleboard, with a TI OPAM processor, a 600 (!) MHz Arm9 processor with a DSP on the same chip. It even has a HDMI connector, runs linux (I find it almost tantalizing if it can also compile code for itself......) Usb, some IO, only ethernet is missing, and wouldn´t it be great of the HDMI could also drive 1080...

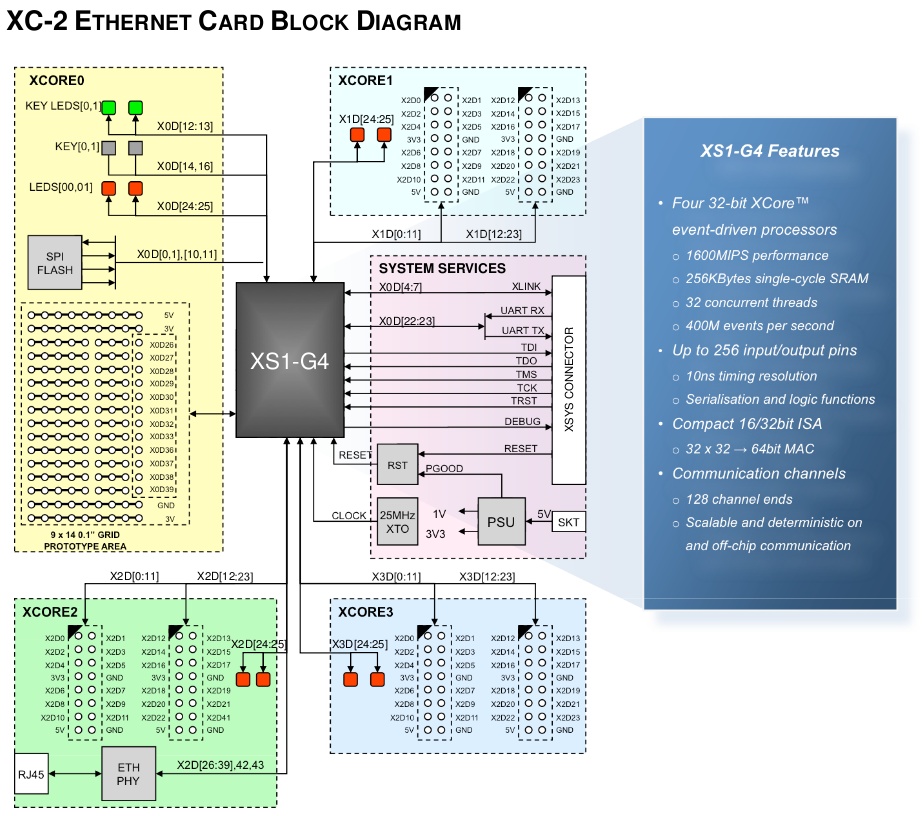

The XMOS 4 processor board with ethernet:

That's new technoloy I think being bought by Intel, where there are multiple processors of the fast and advanced microcontroller (mini-controller ?) kind on a chip, each with their own tasks, programmed in C, and interconnected. Slightly like Transputers (which I had interest in in the time of the 68040) I guess. $150 for the  ethernet (IIRC) isn't too bad for a 4 core machine and many external connections, with freely downloadable software , but I didn't test how much that can do and how easy.

The idea is those chips can also be interconnected, like a parallel processing machine, but with like the faster processors at advanced MC level. Lots less power use and computation power and threads than say the numbercruncher CUDA/Tesla solutions, but with external connections and more independent processors.

Arent there boards and machione which Rock more, THeo? Well, A Intel I7 with Nvidia GTX 260 or Tesla is surely powerfull in certain ways. But wiill draw more from the bank and from the grid.... I'm sure there are still powerfull workstations with other processors than the PC type intels like from HP or so, an array of those should rock. As well as arack full of tesla, and maybe a big grid of PC type processors like appears to be the mainstream of current 'super'  computing, like a 1000 of them with a fast communication method.

There are huge FPGAs. too, and arrasys of them, or arrays of fast DSP machine, like for radar processing (I suppose for the military) I'd think.

'X' parameters ?!

quoting shortly the first paragraph from the agilent web site:

X-parameters* represent a new category of nonlinear network parameters for high-frequency design and were developed and introduced by Agilent Technologies. They are applicable to both large-signal and small-signal conditions, for linear and nonlinear components. They are a mathematical superset of S-parameters meaning that, in the limit of a small signal, Agilent’s X-parameters reduce to S-parameters. X-parameters are a mathematically correct extension of S-parameters to characterize the relative phase and amplitudes of harmonics generated by nonlinear components under large input power levels at all ports. It correctly characterizes impedance mismatches and frequency mixing behavior to allow accurate simulation of cascading nonlinear X-parameter blocks, such as amplifiers and mixers in wireless design.

That's like my professional background being extended on by probably the (with exception of US mil) main industrial widely known player: Agilent. My professional background being Network Theory (The EE/Electronics kind). It's about a sort of holy grail: non-linear network theory.


Like putting on the airco? :) Well I do that only once in a while, and not cooking, washing or keeping the space I use a bit as studio cleaned either.

The bike I bought when I had 'made' a little money already (way too) long ago, like it was a rental being no more such for 2 hundred I guess (maybe 120 euros, I don't recall),the advantage being it wasn't old, it had been normally serviced, and a quality bioke (or it wouldn't have lasted as a rental). Now it looks rusty and in fact the rear sprocket (gearwheel) broke while biking up a bridge:

Wel it has stood outside the better part of a decade, I guess it was due to brake down.  I don't know if I can repair it maybe the whole backwheel is gone...

A fun little (totally unpaid as it is, I'm lucky to be able to run all this machinery I could make) job was to take the side-surround bi-amped monitors I made fom just an indirect sidewise surround setup to pointing it higher and from a little higher than the listener places:

the angle makes it reflect from the ceiling (mostly indirectly from the wall, partially. A part of the wall which is near is damped, and a smaller part of the ceiling, too. To result: getting to be like cinema sound (you know the side stairs and seats run up, and you can hear the sound do that, too).

Is that bluray:

? The subtitle type gives it away, and of course at the resolution of the photograph (I always set scaling in the pages I make to simpy 100%) it would be hard to know: it's live TV on the 28 inch screen, with some corrections and filterings from VDpau and NVidia in action, running mplayer on the Fedora 10/64 machine.

GNU blackfin compiler

From the Koop (coop in english) website I downloaded the svn vversion of the Blackfin toolkit, including the (cross) compiler to run C or C++ on the Blackfin DSP (from Analog Devices, which is in my Synth and on another DSP board I have).

#include <stdio.h>

   printf("Hello, world!");

Set the PATH shell variable to point to the newly compiled compiler:
   export PATH=$PATH:~theo/Blackfin/toolchain//bfin-elf/bin

And run it (generating dual core blackfin dsp code by croesscompiling on the FEdora 10/64 Pentium D machine):

[theo@medion2 blink]$ bfin-elf-gcc -mcpu=bf561 -mmulticore hello.c
/T/home/theo/Fc10/Blackfin/toolchain/bfin-elf/bin/../lib/gcc/bfin-elf/4.1.2/../../../../bfin-elf/lib/libc.a(closer.o): In function `_close_r':
/home/theo/Blackfin/toolchain/gcc-4.1/newlib/libc/reent/closer.c:53: warning: _close is not implemented and will always fail
/T/home/theo/Fc10/Blackfin/toolchain/bfin-elf/bin/../lib/gcc/bfin-elf/4.1.2/../../../../bfin-elf/lib/libc.a(fstatr.o): In function `_fstat_r':
/home/theo/Blackfin/toolchain/gcc-4.1/newlib/libc/reent/fstatr.c:62: warning: _fstat is not implemented and will always fail
/T/home/theo/Fc10/Blackfin/toolchain/bfin-elf/bin/../lib/gcc/bfin-elf/4.1.2/../../../../bfin-elf/lib/libc.a(makebuf.o): In function `__smakebuf':
/home/theo/Blackfin/toolchain/gcc-4.1/newlib/libc/stdio/makebuf.c:96: warning: isatty is not implemented and will always fail
/T/home/theo/Fc10/Blackfin/toolchain/bfin-elf/bin/../lib/gcc/bfin-elf/4.1.2/../../../../bfin-elf/lib/libc.a(lseekr.o): In function `_lseek_r':
/home/theo/Blackfin/toolchain/gcc-4.1/newlib/libc/reent/lseekr.c:58: warning: _lseek is not implemented and will always fail
/T/home/theo/Fc10/Blackfin/toolchain/bfin-elf/bin/../lib/gcc/bfin-elf/4.1.2/../../../../bfin-elf/lib/libc.a(readr.o): In function `_read_r':
/home/theo/Blackfin/toolchain/gcc-4.1/newlib/libc/reent/readr.c:58: warning: _read is not implemented and will always fail
/T/home/theo/Fc10/Blackfin/toolchain/bfin-elf/bin/../lib/gcc/bfin-elf/4.1.2/../../../../bfin-elf/lib/libc.a(writer.o): In function `_write_r':
/home/theo/Blackfin/toolchain/gcc-4.1/newlib/libc/reent/writer.c:58: warning: _write is not implemented and will always fail
/T/home/theo/Fc10/Blackfin/toolchain/bfin-elf/bin/../lib/gcc/bfin-elf/4.1.2/../../../../bfin-elf/bin/ld.real: region MEM_L1_CODE is full (a.out section .text)
/T/home/theo/Fc10/Blackfin/toolchain/bfin-elf/bin/../lib/gcc/bfin-elf/4.1.2/../../../../bfin-elf/bin/ld.real: region MEM_L1_CODE is full (a.out section .text)
/T/home/theo/Fc10/Blackfin/toolchain/bfin-elf/bin/../lib/gcc/bfin-elf/4.1.2/../../../../bfin-elf/bin/ld.real: section .init [00000000ffa00000 -> 00000000ffa00011] overlaps section .text [00000000ffa00000 -> 00000000ffa06627]
/T/home/theo/Fc10/Blackfin/toolchain/bfin-elf/bin/../lib/gcc/bfin-elf/4.1.2/../../../../bfin-elf/bin/ld.real: a.out: section .text lma 0xffa00000 overlaps previous sections
/T/home/theo/Fc10/Blackfin/toolchain/bfin-elf/bin/../lib/gcc/bfin-elf/4.1.2/../../../../bfin-elf/bin/ld.real: a.out: section .fini lma 0xffa00012 overlaps previous sections
/T/home/theo/Fc10/Blackfin/toolchain/bfin-elf/bin/../lib/gcc/bfin-elf/4.1.2/../../../../bfin-elf/lib/basiccrt561b.o: In function `__coreb_start':
/home/theo/Blackfin/toolchain/gcc-4.1/libgloss/bfin/basiccrt.S:386: undefined reference to `_coreb_main'
collect2: ld returned 1 exit status

Of course there´s no stdio implementation, I guess I should include uclinux for that.

Here is a reference to the dual core Blackfin DSP board being programmed with the Analog software and Integrated development Environment, which is limited to 20k code size (and uses another compiler, possibly from Ace, which happens to be somewhat in the neighborhood, but I might prefer the de facto and very well developed version from gnu) for a computer graphics example with a Spartan 3 FPGA as coprocessor (see picture above).

I experimented with the ldr format made by the compiler, the Analog IDE can read it, but I think the memory model standard is for the stamp board, probably not the EZ KIT I use. Also I could make dcx (or what are those called) files, but with different number of sections.

I could try to make s ome program read a pre-located program in via serial or simply using the IDE. Also interesting would be a FPGA memory mapped to the blackfin memory space and set the access speed really fast (as possible) and load flexible program subroutines automatically. I must check out the .org equivalents for the C programs and to compile non-main programs into a memory location.

Well, it is anyhow good to know the whole gcc 4.xx is available for the blackfin.
